Stainless Steel Wire Mesh

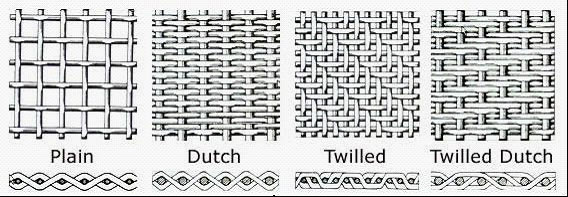

H.I. applied for stainless steel wire mesh or wire cloth can be plain weave, twill weave, Dutch plain weave or Dutch twill weave, while square woven wire mesh is made by either plain weave or twill weave. Woven wire mesh with equal mesh count horizontally or vertically has square opening, hence also called square opening wire mesh, or single layer wire mesh.

Material: Stainless steel wire 304, 304L, 316 or 316L for stainless steel woven wire mesh and cloth.
Standard roll size: Standard width of stainless steel wire mesh: 1m or 48"standard roll length of stainless steel wire mesh: 30m or 100'.
Wire Mesh Packing: wrapped with moister-proof paper, then in wooden cases.
Specification List of Stainless Steel Woven Wire Mesh

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
	Inch	MM	Inch	MM
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63

Stainless Steel Wire Cloth (Plain Dutch Weave)
Mesh		Wire Diameter(mm)		Aperture
Vertical	Horizontal	Vertical	Horizontal	Microns
12mesh	64mesh	0.62mm	0.42mm	270-290um
14mesh	80mesh	0.50mm	0.30mm	220-240um
24mesh	110mesh	0.38mm	0.25mm	115-125um
30mesh	160mesh	0.23mm	0.18mm	95-100um
40mesh	200mesh	0.18mm	0.14mm	70-75um
50mesh	250mesh	0.14mm	0.11mm	60-63um

Stainless Steel Wire Cloth (Twill Dutch Weave)
Mesh		Wire Diameter(mm)		Aperture
Vertical	Horizontal	Vertical	Horizontal	Microns
20mesh	250mesh	0.25mm	0.23mm	110-120um
32mesh	360mesh	0.23mm	0.15mm	100-110um
40mesh	400mesh	0.18mm	0.14mm	90-110um
50mesh	500mesh	0.14mm	0.11mm	70-90um
50mesh	600mesh	0.14mm	0.09mm	60-70um
80mesh	800mesh	0.12mm	0.07mm	45-65um
165mesh	800mesh	0.07mm	0.05mm	24-26um
120mesh	1000mesh	0.08mm	0.055mm	27-28um
165mesh	1450mesh	0.07mm	0.04mm	16-18um
325mesh	2300mesh	0.038mm	0.025mm	8-9um
